celduc SORB
Two-phase Solid State Relays with “push-in” spring type power connectors

The simple, safe, and reliable solution for a more efficient installation.

Safe and reliable connections are essential in many industrial sectors. The PUSH IN technology saves a lot of time and guarantees maximum contact reliability, plus, it is particularly convenient to use.

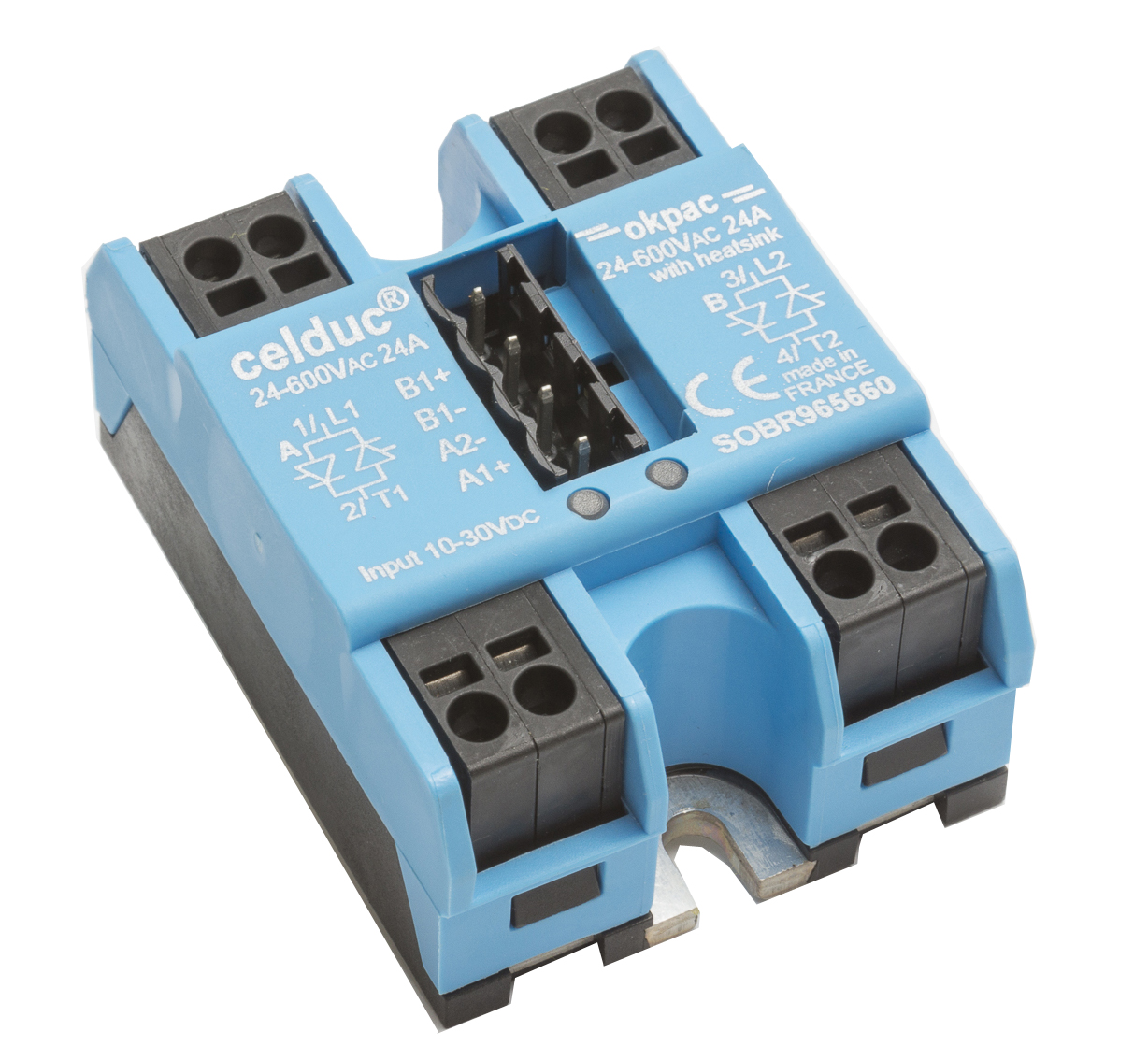

celduc® relais offers a  range of two phase Solid State Relays in okpac® housing with push-in spring power terminals.

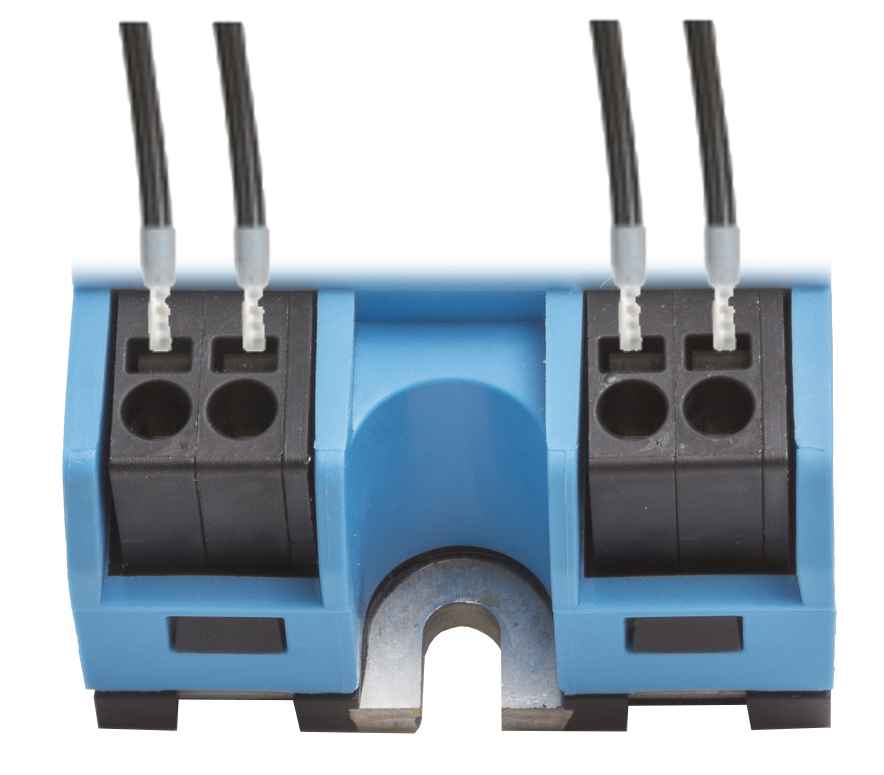

What are the advantages of the “Push-In” Connection ?

  • Simple connection without physical constraint and  without tools
  • Fast wiring, even in tight spaces
  • Wiring 100% secure, 70% faster : Time saving


Available References

SOBR965660 : 2x24A – 24-600VAC – Ctrl 10-30VDC
SOBR965560 : 2x24A – 24-600VAC – Ctrl 10-30VDC
(version with one commun internal connection on input)

Solid State Relays with integrated thermal-pad


SOBR965560-TH : Switching current : 2x24A – Thyristor rating SSR : 2x50A – 24-600VAC – Cde 10-30VDC – Integrated thermal-pad
SOBR967560-TH : Switching current : 2x24A – Thyristor rating SSR : 2x75A – 24-600VAC – Cde 10-30VDC – Integrated thermal-pad

“Ready to use Solid State Relays with built-in heatsink


SOBR967560-WF151 : Switching current : 2x15A @ 40°C – Thyristor rating SSR : 2x75A – 24-600VAC – Cde 10-30VDC – Mounted on heatsink 2.2K/W


What are the typical applications ?

Resistive Loads (AC-51) is the most common application. « Dual » SSRs are used for controlling the temperature inside a cooking oven or injection molding machine. Each output can control an individual heating element.

Bakery oven

Plastic injection molding machines
