A solution that occupies only 30% of the space of standard hockey puck SSRs

SF5 : miniature relay which saves place in your control panels

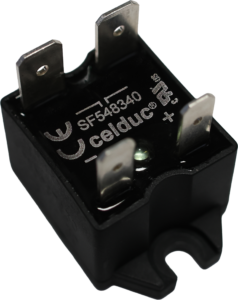

The SF548340 from celduc® relais is a very small power solid state relay (SSR) designed to deliver high switching performance in a compact footprint. Combining robustness, reliability, and compliance with international standards, it is an ideal solution for modern industrial and automation applications where space, efficiency, and safety are critical.

Compact Design, powerful performance and fast FASTON connection

Despite its miniature size, the SF548340 is capable of switching loads up to 30 A at 230 VAC, making it a top choice for applications requiring high electrical performance while having very limited space available. The device includes a visual LED on its input, providing a clear indication of the presence of the control signal and confirming that the relay is activated.

Equipped with FASTON terminal connections, the SF548340 enables fast, reliable and easy-to-implement wiring, thereby facilitating installation and maintenance in the field.

Its compact format allows designers to optimize space in control cabinets, machines and distributed systems, without compromising electrical performance.

Compliance and safety you can trust

The SF548340 is designed in accordance with major international standards, ensuring safe integration worldwide:

• CE and UKCA
• UL approved for North American markets
• VDE certified for European compliance
• RoHS compliant design, supporting environmentally responsible manufacturing and regulatory requirements

These certifications guarantee that the relay meets strict safety, quality, and environmental standards.

Easy integration and thermal management

The relay supports 3–32 VDC control input, making it compatible with PLCs and standard control electronics. Its design allows straightforward mounting on a heatsink when required, ensuring optimal thermal performance even at high currents.

Typical applications

The SF548340 is well suited for:

• Industrial automation systems
• Heating and temperature control
• Packaging and processing machines
• Motor and resistive load control

Key benefits at a glance

• Miniature solid state relay for space-saving designs
• 30A / 230Vac switching current capability
• RoHS compliant and environmentally friendly
• UL and VDE approved for global use
• High reliability and long operational life

The SF548340 is the ideal choice for engineers and system designers seeking a compact, high-current, and fully certified solid state relay that meets today’s performance and regulatory demands.
