SF548340 – New miniature Solid State Relay

A solution that uses only 30% of the space required by standard hockey puck SSRs

SF5: the miniature solid state relay that saves space in your control panels

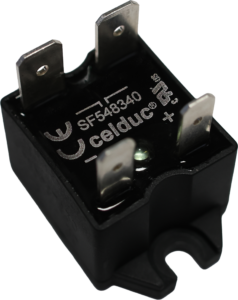

The SF548340 from celduc® relais is an ultra-compact solid state relay (SSR). It delivers high switching performance while taking up very little space.

As a result, it is an excellent choice for modern industrial and automation systems. It combines reliability, durability, and compliance with international standards. Therefore, it is ideal for applications where space, efficiency, and safety are key requirements.

Compact design with high performance

The SF548340 requires only 30% of the space typically needed by a standard hockey puck SSR.

Despite its miniature size, it can switch loads up to 30 A at 230 VAC. Therefore, it is well suited for applications that demand high electrical performance in a limited space.

In addition, the relay features an input status LED. This visual indicator clearly shows when the control signal is present and confirms that the relay is active.

Fast and easy wiring with FASTON terminals

The SF548340 is equipped with FASTON terminal connections. As a result, wiring is quick, simple, and reliable.

Moreover, installation and maintenance become easier for machine builders and maintenance teams.

Thanks to its compact footprint, the relay fits easily into control panels, industrial machines, and distributed systems. Consequently, designers can optimize available space without sacrificing performance.

Compliance and safety you can trust

The SF548340 complies with major international standards. Therefore, it can be integrated into equipment intended for global markets.

Key certifications include:

• CE and UKCA markings
• UL approval for North American markets
• VDE certification for European compliance
• RoHS compliance for environmentally responsible design

These certifications demonstrate compliance with strict safety, quality, and environmental requirements.

Easy integration and thermal management

The relay accepts a 3–32 VDC control input. As a result, it is compatible with most PLCs and standard control systems.

Furthermore, it can be easily mounted on a heatsink when required. This helps maintain optimal thermal performance, even at high current levels.

Typical applications

The SF548340 is ideal for a wide range of industrial applications, including:

• Industrial automation systems
• Heating and temperature control
• Packaging and processing machines
• Motor and resistive load control

Key benefits at a glance

• Miniature solid state relay for space-saving designs
• 30A / 230Vac switching current capability
• RoHS compliant and environmentally friendly
• UL and VDE approved for global use
• High reliability and long operational life

The SF548340 is designed for engineers and system designers looking for a compact yet powerful solid state relay.

By combining a small footprint, high current capacity, and international certifications, it meets the performance and compliance requirements of today’s industrial applications.
