Solid State Relays available in DIN rail mount

DIN rail mount is one of the main mounting styles for industrial devices

DIN rail has become very common on industrial panels and cabinets, which makes DIN rail mount one of the main mounting styles for industrial devices. DIN rails are the long metal strips that are used for mounting industrial process control devices, such as Solid State Relays. These DIN rails make a fundamental component of industrial equipment cabinet racks and are used for mounting process control products.
As the name implies, DIN rail mount solid state relays are designed to be mounted on a DIN rail. These are mostly used in industrial and commercial applications and have lots of advantages.

Advantages of using DIN Rails In your applications

The following benefits of DIN rails make them suitable for several applications.

DIN rails save space, time, and efforts of mounting each device or component separately.
The limited space requirement is an important benefit as it links internal and external cabling circuits together.
They are cost convenient, and feature universally accepted connection protocols and also offer organized system layout.
The advantage of this type of SSR is that it can be easily installed and removed from the DIN rail.

Now that the importance of DIN rails are discussed, let us introduce you celduc®’s range of DIN Rail Mount Solid State Relays.

Overview of celduc’s range of DIN Rail mount Solid State Relays and Contactors

celduc® relais offers an extensive line of DIN Rail mount Solid State Relays and Contactors to suit a broad range of market needs.

DIN Rail Mount AC Output SSRs – Single phase

Various single phase Solid State Relays are available in DIN-Rail mount :

–SAL/SAM Series with screw connection on inputs

–SUL/SUM Series with pluggable connector on inputs

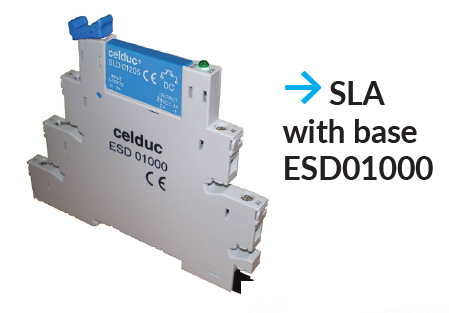

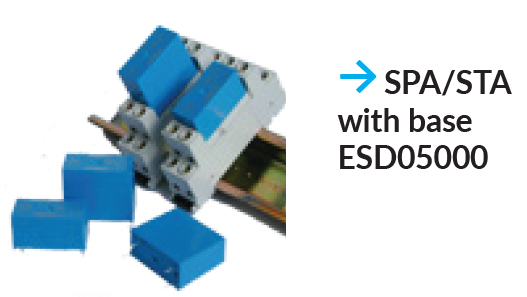

-Interface relays SLA and SPA/STA Series with base for a DIN Rail

-Interface relays XKA Series and XKH Series (with built-in heatsink)

DIN Rail Mount AC Output SSRs – Three-phase

Various three-phase Solid State Relays are available in DIN-Rail mount :

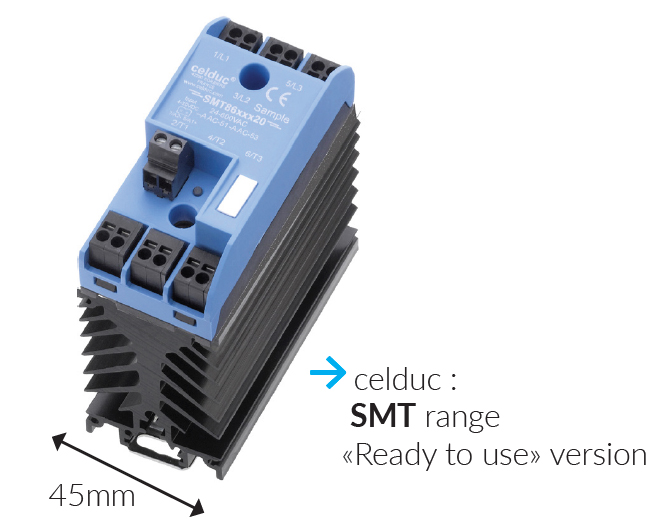

–SMT Series : compact 45mm version

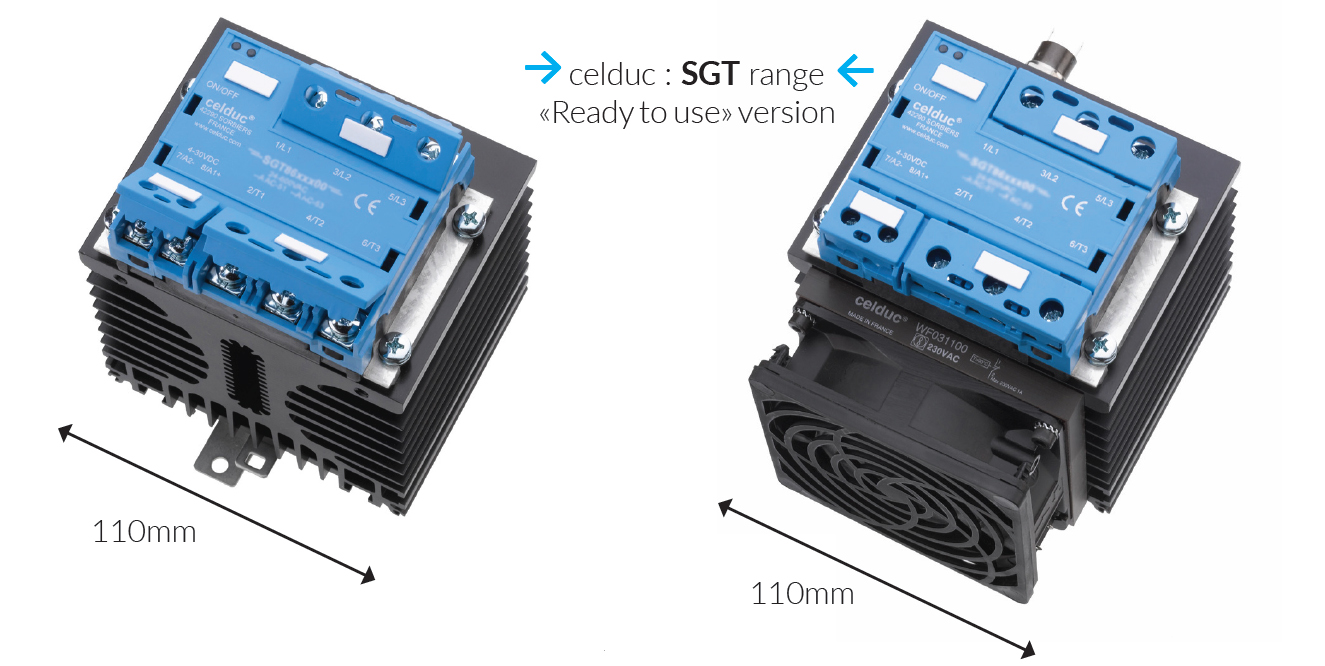

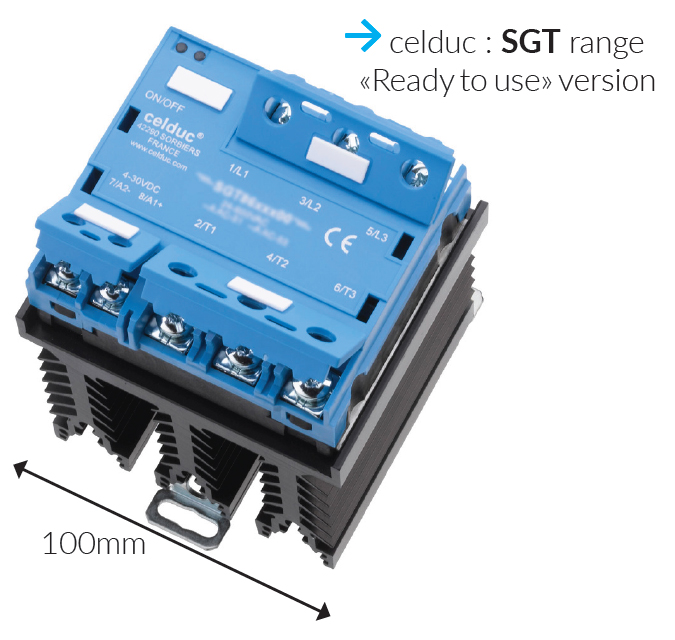

–SGT Series : “ready to use” version with integrated heatsink

DIN Rail Mount DC Output SSRs

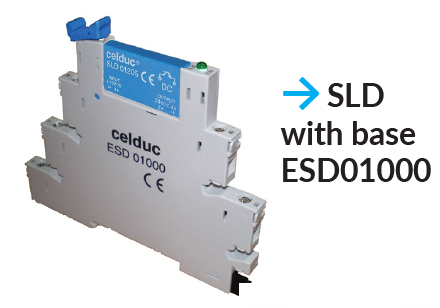

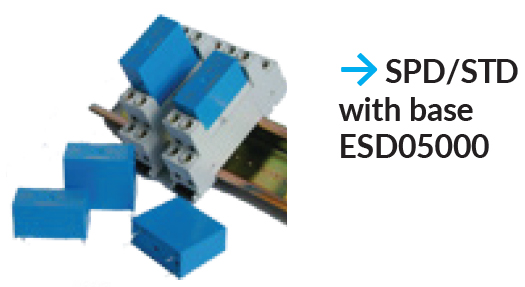

-Interface relays SLD and SPD/STD Series with base for a DIN Rail

-Interface relays XKD Series

Din Rail mounting accessories

Metal DIN Rail Mounting Clips are easy to install : you only need to push and hold the button at the top to install it or if you wish to remove it from the DIN rail.

1LD00100 (25mm width) : suitable for single phase SSRs type SO / SA / SU and 3-phase SSRs type SMT / SMB
for top hat section rail TH35-15 (35 x 15 mm Mounting Rail) & TH35-7,5 (35 x 7,5 mm Mounting Rail) according to IEC 60715

1LD12020 (45mm width) : suitable for single phase SSRs type SO ; for mounting two single phase SSRs type SA / SU and 3-phase SSRs type SMT / SMB
for top hat section rail TH35-15 (35 x 15 mm Mounting Rail) according to IEC 60715

1L936100 : suitable for 3-phase solid state relays
for top hat section rail TH35-15 (35 x 15 mm Mounting Rail) according to IEC 60715

Grounding and Safety precautions

DIN-Rail adaptor can be used without a ground wire if the support on which it is mounted is itself connected to the ground.

The mounting and dismounting of SSRs mounted on DIN Rail adaptor should be done when the voltage is off. Some cautions have to be taken by operator to protect himself against injuries from pinch points, cuts, impacts with head, eyes or feet. The operator must be qualified.

Conclusion

In terms of mechanical layout and dimensions of solid state relays, there are several housing that have become industry standard, the most popular one is the hockey puck style housing. Now you can find different package styles allowing the SSRs to be mounted in several different ways, depending on the preferences and the space availability of the user, such as: panel mount, DIN Rail mount and PCB mount. celduc® offers a wide range of products covering all market needs.
